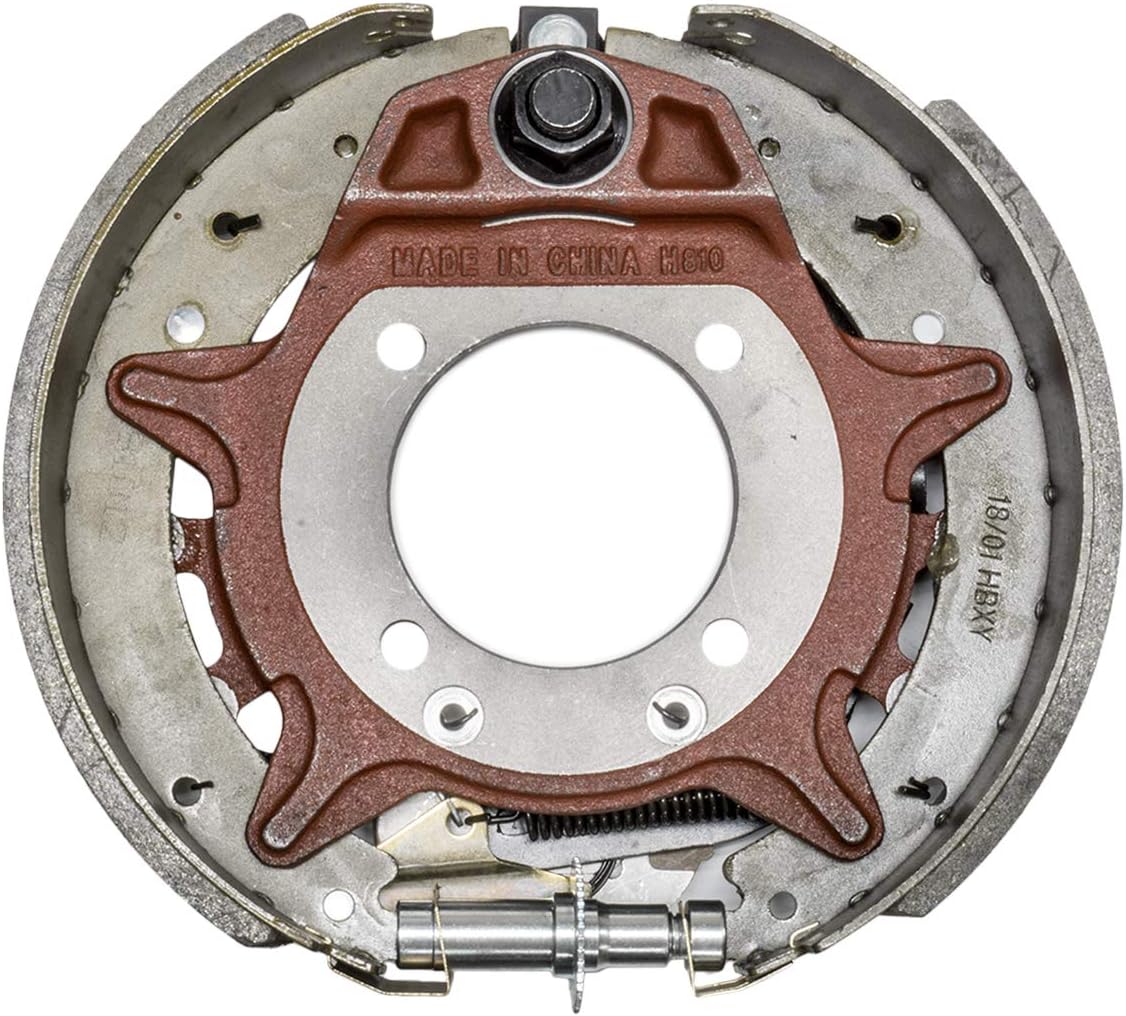

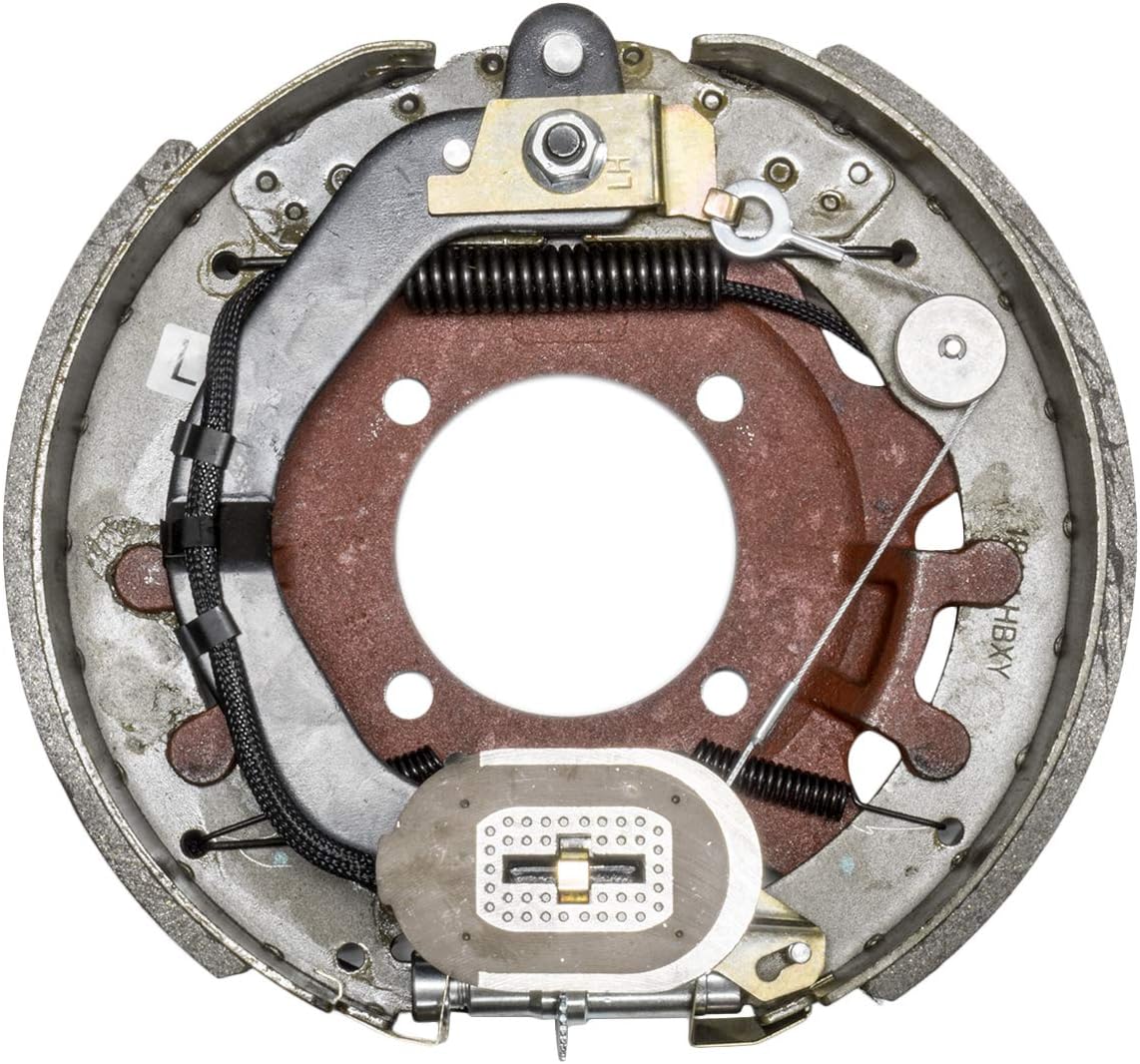

EPR (2) Sets 12.25" x 3.375" Electric Trailer Brakes Left & Right Kit 8,000 9,000 lbs Axle 2RH 2LH

Otherwise known as "loaded", brake assembly that comes pre-assembled and ready to be mounted onto your flange with existing bolts and nuts. This brake uses a forward self-adjusting feature which adjusts the brakes on each forward stop. As the shoes wear on the drums, the adjuster arm rotates the screw assembly at the bottom of the brake, expanding the shoes to fill in the gap. The 4-hole flange pattern can be found on some 8,000 and 9,000 lbs. AL-KO and Dexter axles.LEFT HAND (DRIVER'S SIDE) REPLACES OEM# - Dexter 23-434 (023-434, K23-434)RIGHT HAND (PASSENGER'S SIDE) REPLACES OEM# - Dexter: 23-435 (023-435, K23-435)FITS MODELS - 9,000 to 10,000 lbs. axles with AL-KO/Hayes 4-hole mounting flangesFEATURES - One left hand brake assembly & One right hand brake assembly, Loaded backing plate is ready to mount, Mounting hardware not included, Brake controller required for operation (sold separately), Electric brake systems offer more user control compared to hydraulic systems, Brake lines and brake actuators not needed, Simple and quick installation, Has more moving parts making maintenance cheaper, Forward Self-Adjusting feature, Shoes will automatically adjust every time braking is applied for optimal performance, Non-polarized magnet allows either wire to be used as the ground or power supply, Pre-spliced magnet wires.SPECIFICATIONS - Brake Size: 12.25" x 3.375" (3 3/8"), Individual Brake Capacity: 4,500 lbs. - 5,000 lbs., Axle Capacity: 9,000 lbs. - 10,000 lbs., 4-Hole Flange, Wheel Size: 15" and up, Shoe Adjustment: Self-Adjusting ***NOTE: Electric brakes should not be used on marine applications***

• LEFT HAND (DRIVER'S SIDE) REPLACES OEM# - Dexter 23-434 (023-434, K23-434)
• RIGHT HAND (PASSENGER'S SIDE) REPLACES OEM# - Dexter: 23-435 (023-435, K23-435)
• FITS MODELS - 9,000 to 10,000 lbs. axles with AL-KO/Hayes 4-hole mounting flanges
• SPECIFICATIONS - Brake Size: 12.25" x 3.375" (3 3/8"), Individual Brake Capacity: 4,500 lbs. - 5,000 lbs
• Axle Capacity: 9,000 lbs. - 10,000 lbs., 4-Hole Flange, Wheel Size: 15" and up, Shoe Adjustment: Self-Adjusting
